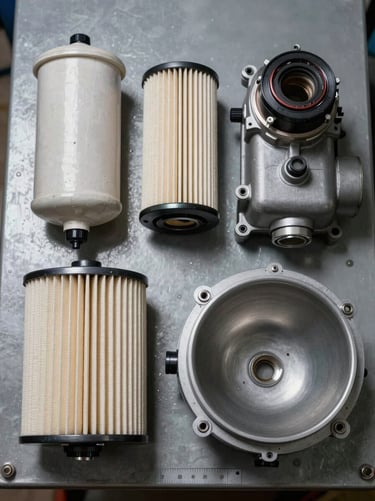

Extreme close-up overhead shot of four industrial air compressor filter types arranged flat on a grey steel surface under studio strobes — oil separator cartridge, pleated intake filter, inline filter housing, and coalescing bowl — threading and seals in sharp focus, dimensional scale visible
Extreme close-up overhead shot of four industrial air compressor filter types arranged flat on a grey steel surface under studio strobes — oil separator cartridge, pleated intake filter, inline filter housing, and coalescing bowl — threading and seals in sharp focus, dimensional scale visible
Request a Quote
— India Warehouse — Ready to Ship

Air Compressor Filters — Full Catalog, Exact Specs

Oil separators, intake filters, inline filters, and coalescing filters — all stocked in Mumbai. Part numbers, dimensions, and compatibility data below.

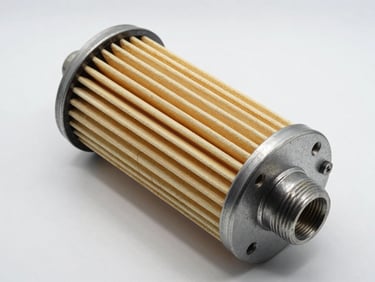

Studio strobe flat-lay of an industrial oil separator filter cartridge on a white surface — spiral-wound glass fibre element, metal end caps, threaded port visible, high contrast lighting showing surface texture and exact dimensions
Studio strobe flat-lay of an industrial oil separator filter cartridge on a white surface — spiral-wound glass fibre element, metal end caps, threaded port visible, high contrast lighting showing surface texture and exact dimensions

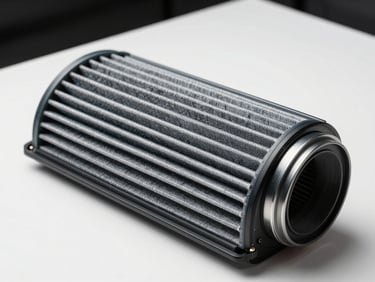

Studio strobe flat-lay of a pleated intake air filter element on a white surface — accordion-folded synthetic media, rubber gasket seal, open-cell end, high-contrast lighting showing filter media depth and OD dimensions clearly
Studio strobe flat-lay of a pleated intake air filter element on a white surface — accordion-folded synthetic media, rubber gasket seal, open-cell end, high-contrast lighting showing filter media depth and OD dimensions clearly

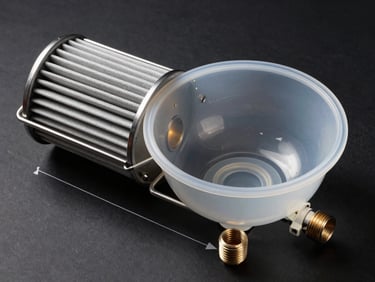

Studio strobe flat-lay of an inline compressed air filter housing with bowl removed — stainless baffle, polycarbonate bowl, manual drain port, BSP threaded inlet and outlet marked, high-contrast top-down lighting showing port dimensions
Studio strobe flat-lay of an inline compressed air filter housing with bowl removed — stainless baffle, polycarbonate bowl, manual drain port, BSP threaded inlet and outlet marked, high-contrast top-down lighting showing port dimensions
Studio strobe flat-lay of a coalescing filter element on a white surface — borosilicate glass fibre wrap, outer drainage layer, metal inner core with perforations visible, overhead lighting showing layered construction and OD measurement
Studio strobe flat-lay of a coalescing filter element on a white surface — borosilicate glass fibre wrap, outer drainage layer, metal inner core with perforations visible, overhead lighting showing layered construction and OD measurement
/ Four Filter Types

Select Your Filter Category

PHX-OS Series
PHX-IF Series
PHX-IL Series
PHX-CF Series

Oil Separator Filters

Intake Filters

Inline Filters

Coalescing Filters

Removes particulate from ambient air at the compressor inlet. Dry pleated media elements for rotary screw and reciprocating compressors. OD 100–320 mm.

Separates aerosol oil and water from compressed air to 0.01 mg/m³ residual. Borosilicate glass fibre element. Compatible with Atlas Copco, Elgi, Kaeser housings.

Coalesces oil mist from compressed air downstream of the compressor stage. Compatible with screw and piston compressors. Port sizes G1/2 to G2.

General-purpose particulate removal in compressed air lines. Sintered bronze or pleated polyester element. Rated to 16 bar. Port sizes G1/4 to G1.

+ Dimensional Data

Specifications — No Phone Call Required

Part number, OD, length, port size, and OEM cross-reference listed for every SKU. Confirm fit before you order.

Oil Separator — PHX-OS-140
Coalescing — PHX-CF-090
Intake — PHX-IF-200

OD: 200 mm | Length: 300 mm | Media: dry pleated polyester | Efficiency: ISO 8573-1 Class 3 | Cross-ref: Sullair 250025-526

OD: 140 mm | Length: 220 mm | Port: G1 BSP | Flow: 18 m³/min | Cross-ref: Atlas Copco 1622-0647-00, Elgi EN18

OD: 90 mm | Length: 180 mm | Port: G3/4 BSP | Rating: 0.01 mg/m³ | Cross-ref: Kaeser 6.2089.0, Ingersoll Rand 92746788

Send an Enquiry

Have a Part Number? Send It Over.

Submit your part number or OEM cross-reference and we confirm stock, dimensions, and dispatch date — same business day.
